Main Features

  • Excellent long-term stability
  • Thin-film-on-steel sensor technology
  • Completely welded steel sensor system without additional seals
  • Superior anti-interference,vibration resistance,electromagnetic compatibility,shock resistance and advanced insulation film material resistant to very high over pressures
  • Wide temperature adaptability
  • Response time ≀1ms
  • Protection IP67
  • Various electrical connections
  • Low cost, adapt needs of customers to develop OEM solutions

Ordering Information

  • Procurement Guide: Type code. Output signal. Pressure connection. Electrical connection. Measuring range
  •  Example: TPS.03.42.G14M.52.25MPA
Category:

The TPS series pressure transmitter has extremely robust structure and stable sensor with sputtering thin-film-on-steel technology, as a result, they have proven themselves in a multitude of demanding applications in harsh environment. Superior precise manufacturing ensure the transmitters work perfectly, especially in areas where high requirements are placed on long-term stability, vibration resistance, electromagnetic compatibility, shock resistance or temperature insensitivity, measuring range from  0 ~ 5bar… 2,500bar [ 100…to 36,000psi ].

Over Pressure & Burst Pressure

Measurement Range Over Pressure Burst Pressure Measurement Range Over Pressure Burst Pressure
0…0.5 MPa 3 X Range 20 X Range 0…60 MPa 2 X Range 5 X Range
0…1.0 MPa 3 X Range 20 X Range 0…70 MPa 1.5 X Range 5 X Range
0…1.6 MPa 3 X Range 15 X Range 0…100 MPa 1.5 X Range ≀400MPa
0…2.5 MPa 3 X Range 15 X Range 0…120 MPa 1.5 X Range ≀400MPa
0…4 MPa 2 X Range 10 X Range 0…140 MPa 1.5 X Range ≀400MPa
0…6 MPa 2 X Range 10 X Range 0…160 MPa 1.5 X Range ≀400MPa
0…10 MPa 2 X Range 10 X Range 0…180 MPa 1.5 X Range ≀400MPa
0…16 MPa 2 X Range 5 X Range 0…200 MPa 1.5 X Range ≀400MPa
0…25 MPa 2 X Range 5 X Range 0…250 MPa ≀300MPa ≀400MPa
0…40 MPa 2 X Range 5 X Range



Download

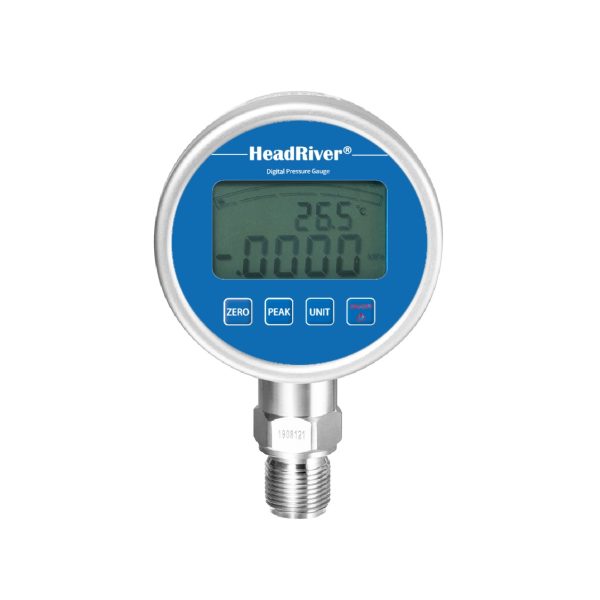

Datasheet: HeadRiver Industrial Digital Pressure Gauge TPS.08 Rev.A EN
