Main Features
- Exquisite and compact design with high precision
- Excellent long-term stability Thin-film-on-steel sensor technology
- Completely welded steel sensor system without additional seals
- Dry seals without oil filling, high stability, no potential leakage
- Superior anti-interference, vibration resistance, electromagnetic compatibility, shock resistance and advanced insulation film material resistant to very high over pressures
- Integrated structure, suitable for various fluid media
- Low temperature drift, low latency
Ordering Information
- Procurement Guide: Type code. Output signal. Pressure connection. Electrical connection. Measuring range
- Example: TPS.06.45.M6.60.40MPA

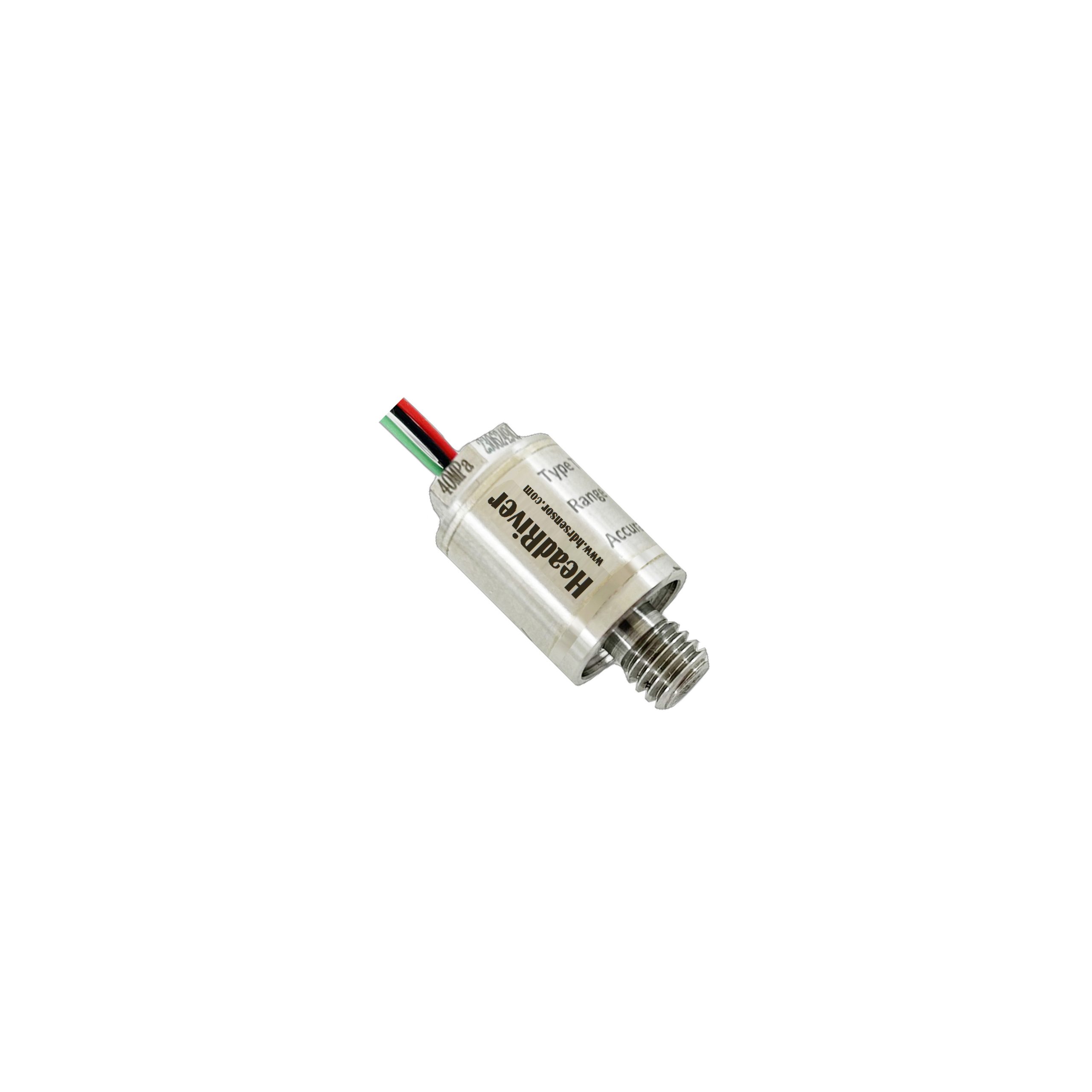

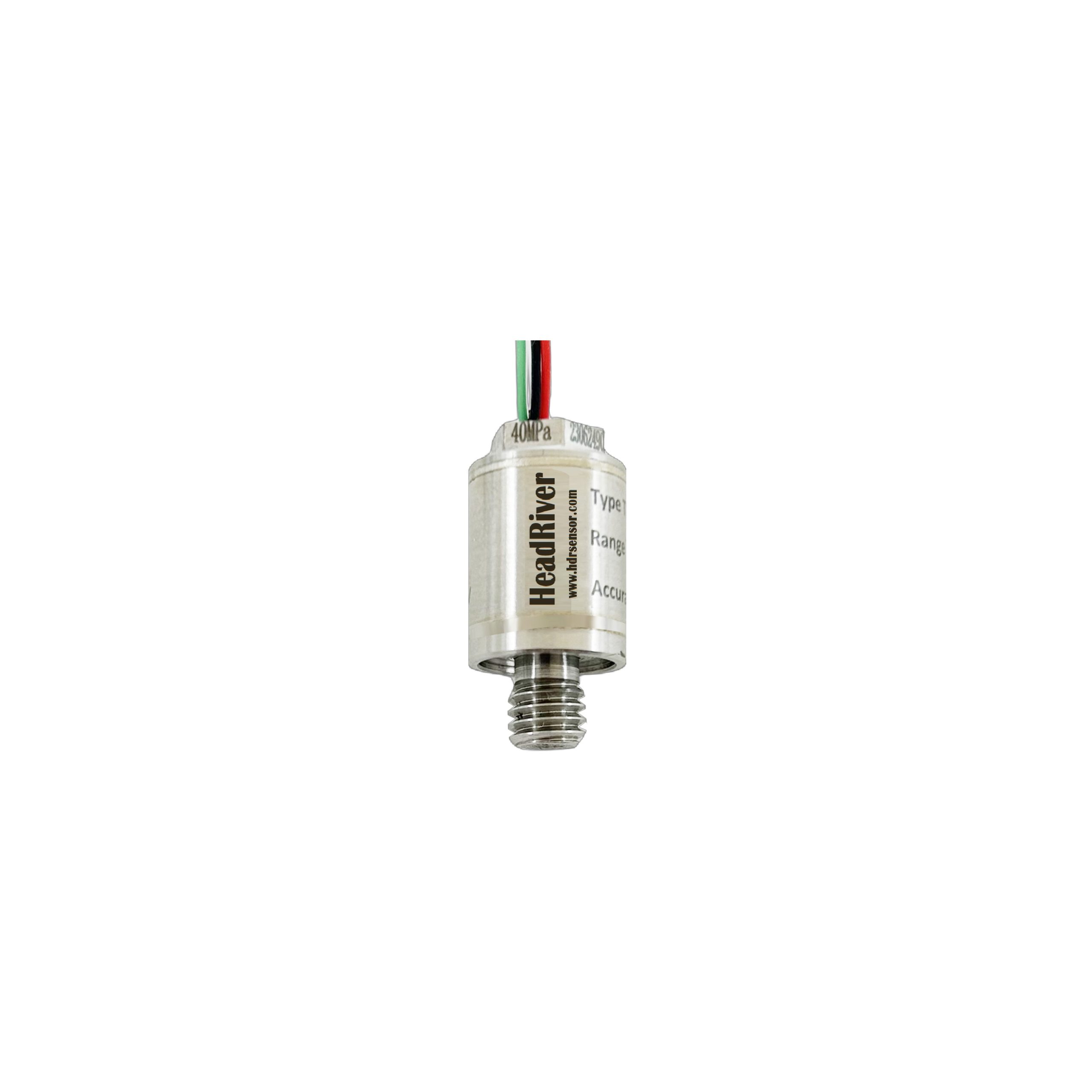

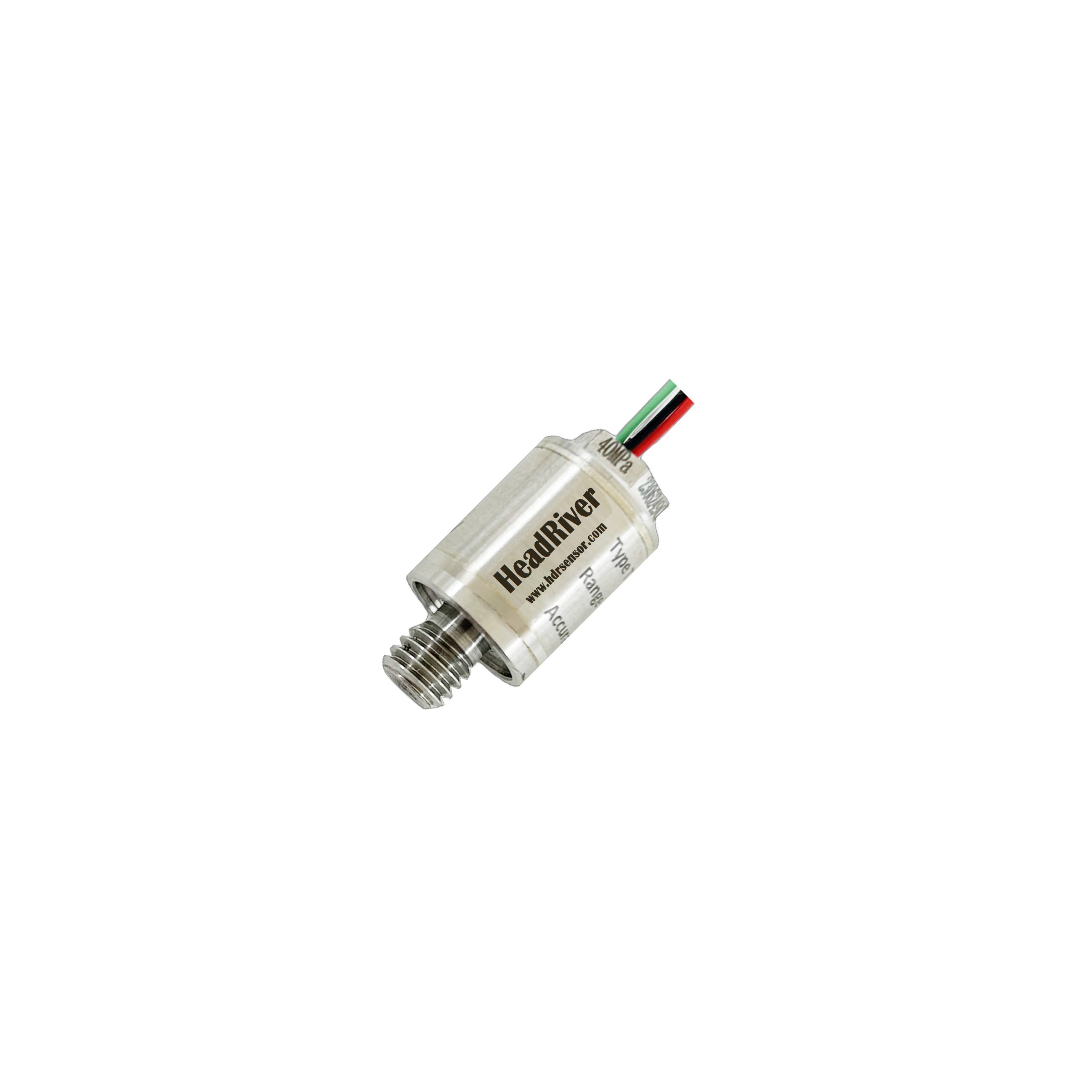

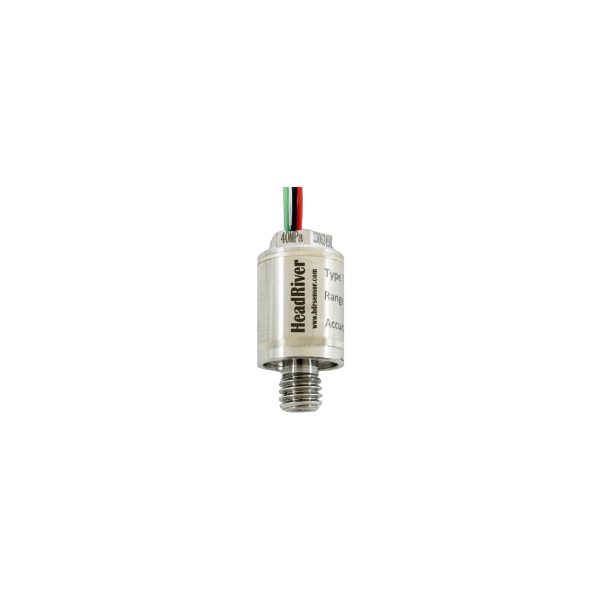

The TPS series pressure transmitter has extremely robust structure and stable sensor with sputtering thin-film-on-steel technology, as a result, they have proven themselves in a multitude of demanding applications in harsh environment. Superior precise manufacturing ensure the transmitters work perfectly, especially in areas where high requirements are placed on long-term stability, vibration resistance, electromagnetic compatibility, shock resistance or temperature insensitivity, measuring range from 0 ~ 5bar… 2,500bar [ 100…to 36,000psi ].
Over pressure & Burst Pressure
| Measurement Range | Over Pressure | Burst Pressure |
| 0…0.5 MPa | 3 X Range | 20 X Range |
| 0…1.0 MPa | 3 X Range | 20 X Range |
| 0…1.6 MPa | 3 X Range | 15 X Range |
| 0…2.5 MPa | 3 X Range | 15 X Range |
| 0…4 MPa | 2 X Range | 10 X Range |
| 0…6 MPa | 2 X Range | 10 X Range |
| 0…10 MPa | 2 X Range | 10 X Range |
| 0…16 MPa | 2 X Range | 5 X Range |
| 0…25 MPa | 2 X Range | 5 X Range |
| 0…40 MPa | 2 X Range | 5 X Range |
Download
Datasheet: HeadRiver Pressure Transmitter TPS.06 Rev.A EN
| Type code | TPS.06 |
|---|---|
| Applications | Hydraulic pump, distribution valve, hydraulic actuator |
| Measuring principle | Thin-film-on-steel |
| Measuring range | 0 ~ 5bar… 400bar |
| Output signal | 45 – 0.5 … 4.5 VDC |
| Supply Voltage | 8~32VDC |
| Current input | ≤5mA |
| Electrical connection | Teflon straight out |
| Sensor | 17-4PH |
| Over pressure | See tab in product "Description" |
| Burst pressure | See tab in product "Description" |
| Process connection | M6X1.0 |
| Accuracy | ± 0.5% FS |
| Long term stability | ≤ 0.2% FS/year |
| Rise time | ≤1ms |
| Durability | ≥10 million times |
| Pressure Media | Fluids compatible with 17-4PH |
| Media temperature | -40°C…+125°C |
| Ambient temperature | -40°C … +125°C |
| Storage temperature | -40°C … +125°C |
| Sealing | O-Ring/ED |
| Structural | SW8 (Head) |
