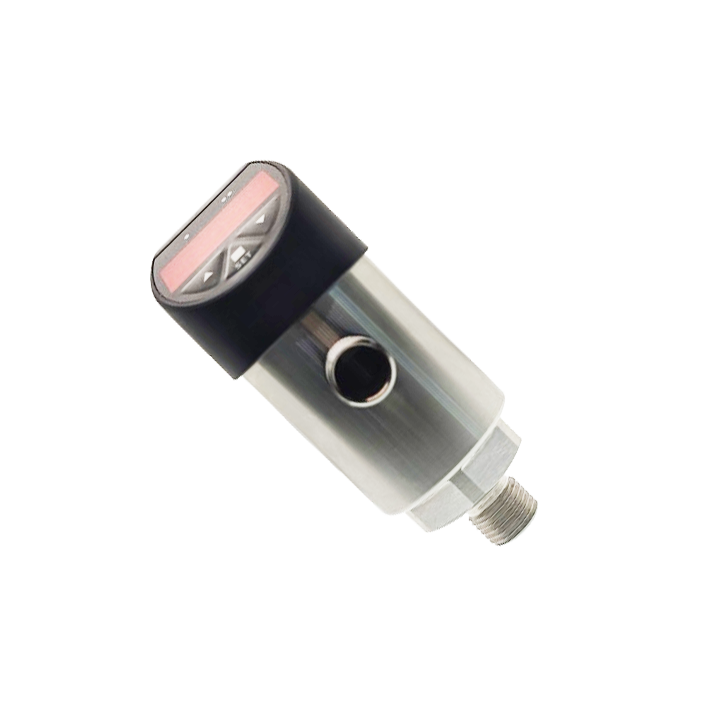

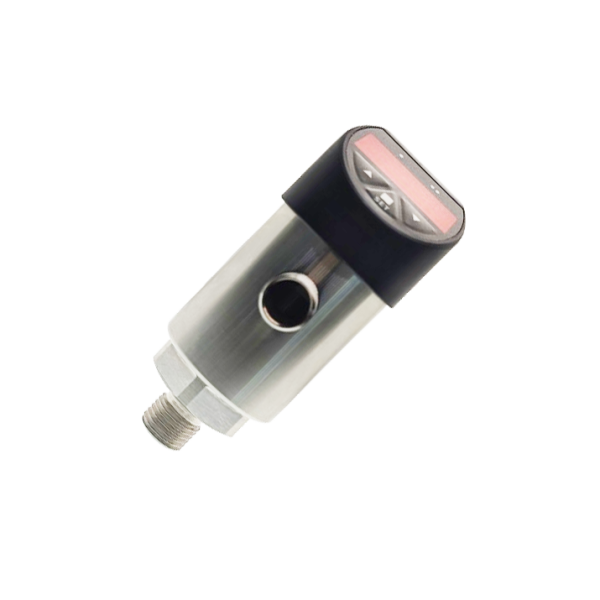

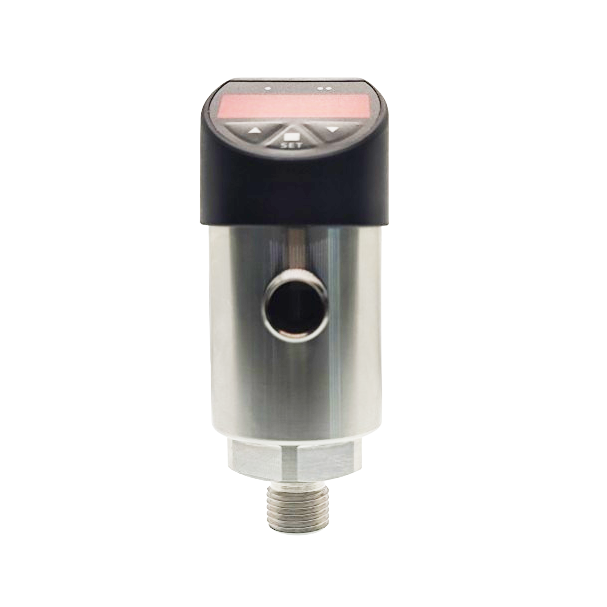

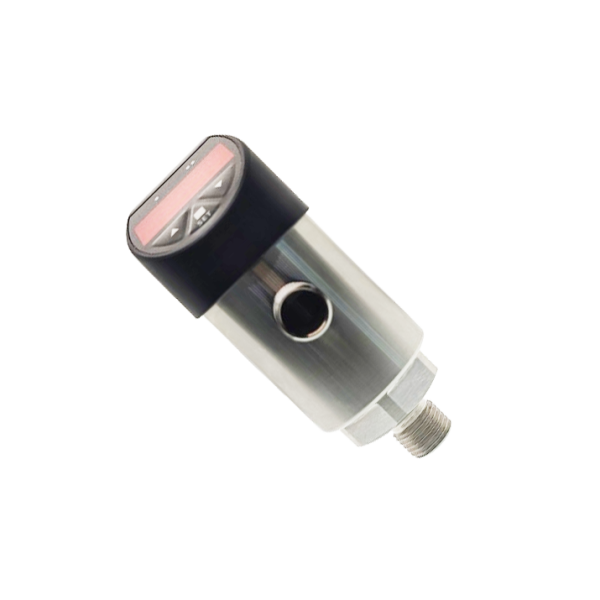

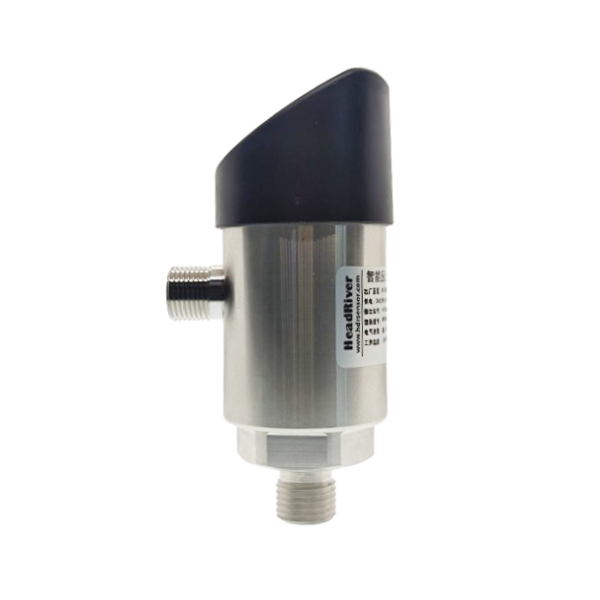

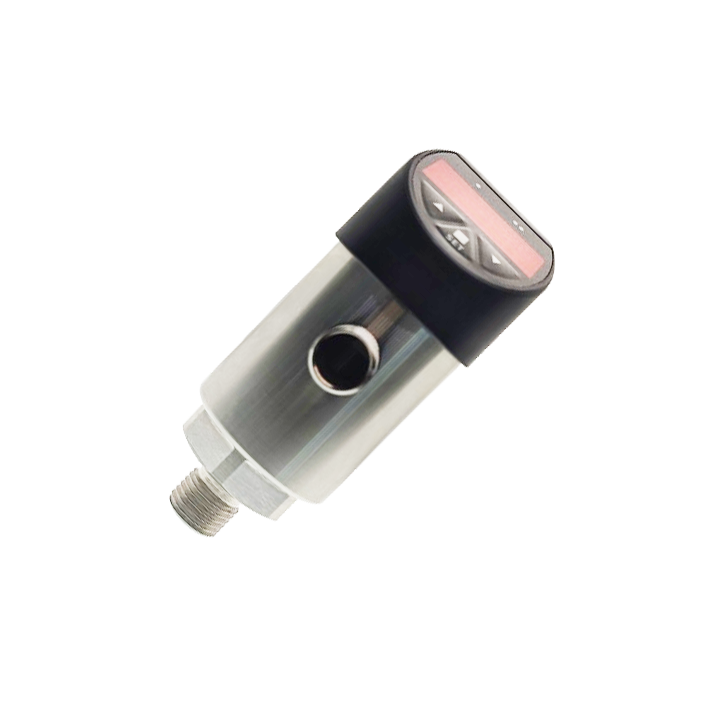

Main Features
- Excellent long-term stability
- Thin-film-on-steel sensor technology
- Completely welded steel sensor system without additional seals
- Superior anti-interference,vibration resistance,electromagnetic compatibility,shock resistance and advanced insulation film material resistant to very high over pressures
- Wide temperature adaptability
- Response time ≤1ms
- Protection IP67
- Various electrical connections
- Low cost, adapt needs of customers to develop OEM solutions
Ordering Information
- Procurement Guide: Type code. Output signal. Pressure connection. Electrical connection. Measuring range
- Example: TPS.01.42.G14M.52.25MPA
The TPS series pressure transmitter has extremely robust structure and stable sensor with sputtering thin-film-on-steel technology, as a result, they have proven themselves in a multitude of demanding applications in harsh environment. Superior precise manufacturing ensure the transmitters work perfectly, especially in areas where high requirements are placed on long-term stability, vibration resistance, electromagnetic compatibility, shock resistance or temperature insensitivity, measuring range from 0 ~ 5bar… 2,500bar [ 100…to 36,000psi ].
Over Pressure & Burst Pressure
| Measurement Range | Over Pressure | Burst Pressure | Measurement Range | Over Pressure | Burst Pressure |
| 0…0.5 MPa | 3 X Range | 20 X Range | 0…60 MPa | 2 X Range | 5 X Range |
| 0…1.0 MPa | 3 X Range | 20 X Range | 0…70 MPa | 1.5 X Range | 5 X Range |
| 0…1.6 MPa | 3 X Range | 15 X Range | 0…100 MPa | 1.5 X Range | ≤400MPa |
| 0…2.5 MPa | 3 X Range | 15 X Range | 0…120 MPa | 1.5 X Range | ≤400MPa |
| 0…4 MPa | 2 X Range | 10 X Range | 0…140 MPa | 1.5 X Range | ≤400MPa |
| 0…6 MPa | 2 X Range | 10 X Range | 0…160 MPa | 1.5 X Range | ≤400MPa |
| 0…10 MPa | 2 X Range | 10 X Range | 0…180 MPa | 1.5 X Range | ≤400MPa |
| 0…16 MPa | 2 X Range | 5 X Range | 0…200 MPa | 1.5 X Range | ≤400MPa |
| 0…25 MPa | 2 X Range | 5 X Range | 0…250 MPa | ≤300MPa | ≤400MPa |
| 0…40 MPa | 2 X Range | 5 X Range |
Download
Datasheet: HeadRiver Pressure Switch TPS.01W Rev.B EN
| Type code | TPS.01 |
|---|---|
| Applications | Hydraulics |
| Measuring principle | Thin-film-on-steel |
| Measuring range | 0 ~ 5bar… 2,500bar |
| Output signal | 42 – 4 … 20 mA |
| Rise time | ≤1ms |
| Insulation resistance | ≥500MΩ/500VDC |
| Pressure connection | G14F – G1/4 female |
| Sensor | 17-4PH |
| Over pressure | See tab in product "Description" |
| Burst pressure | See tab in product "Description" |
| Accuracy | ± 0.5% FS (±0.25% FS Optional) |
| Long term stability | ≤ 0.1% FS/year |
| EMC protection | Emission (IEC 61000-6-3) |
| Vibration | 20g, 20Hz ～ 2000H (IEC60068-2-6) |
| Shock | 100g, 6ms (IEC60068-2-27) |
| Durability | 10 million times |
| Media temperature | -40°C…+125°C |
| Protection | IP67 |
| Electrical connection | 51 – Delphi Packard Metri Pack (3pin) |
